Alat Laboratorium Aspal

Standard Testing : ASTM D-1559 / AASHTO T-245 / SNI 06-2484-1991
For determining the resistance to plastic flow of cylinder specimen of bituminous paving mixture loaded on the lateral surface by means of the marshall apparatus.

Specification :

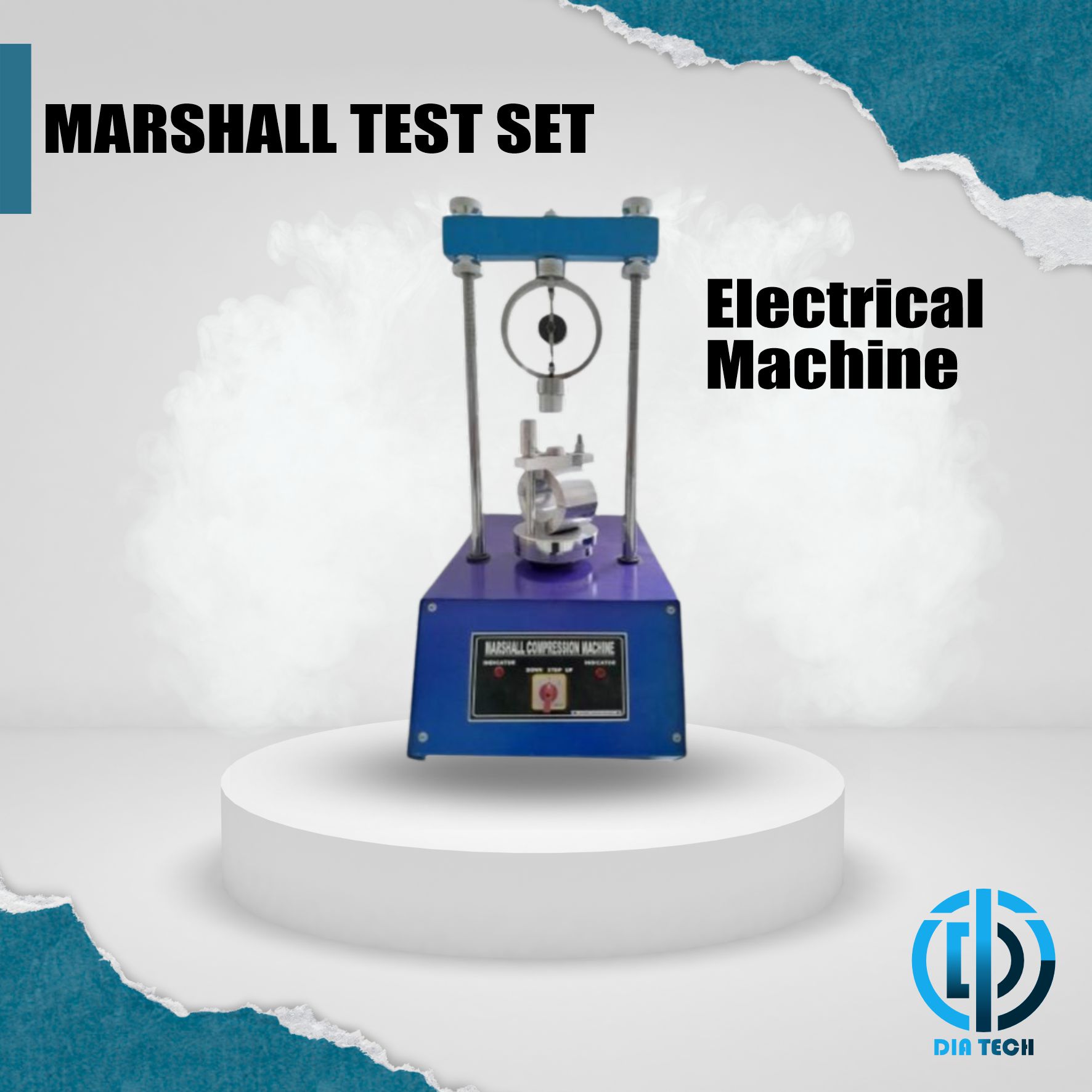

DA-321 Compression Machine : Steel frame electric, 220 V-AC, 1/2 HP 1 Phase, speed : 2″ per-minute. (1 set)

DA-322 Compaction Mold : Machine steel, plated, 4inch dia., 3inch height, with collar and base plate. (1 set)

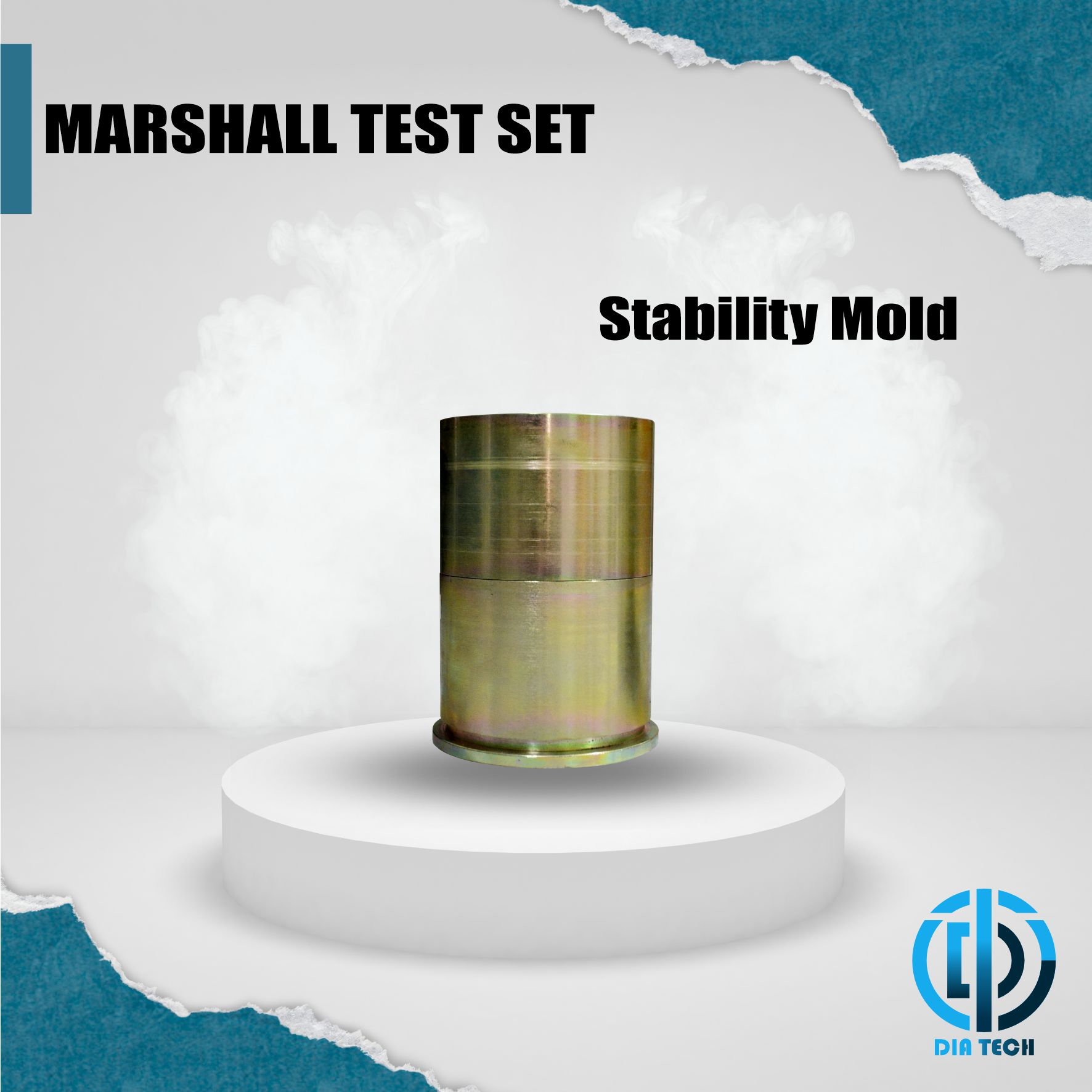

DA-323 Stability Mold : Cast alumunium, split type 4 inch i.d., 4inch wide. (1 set)

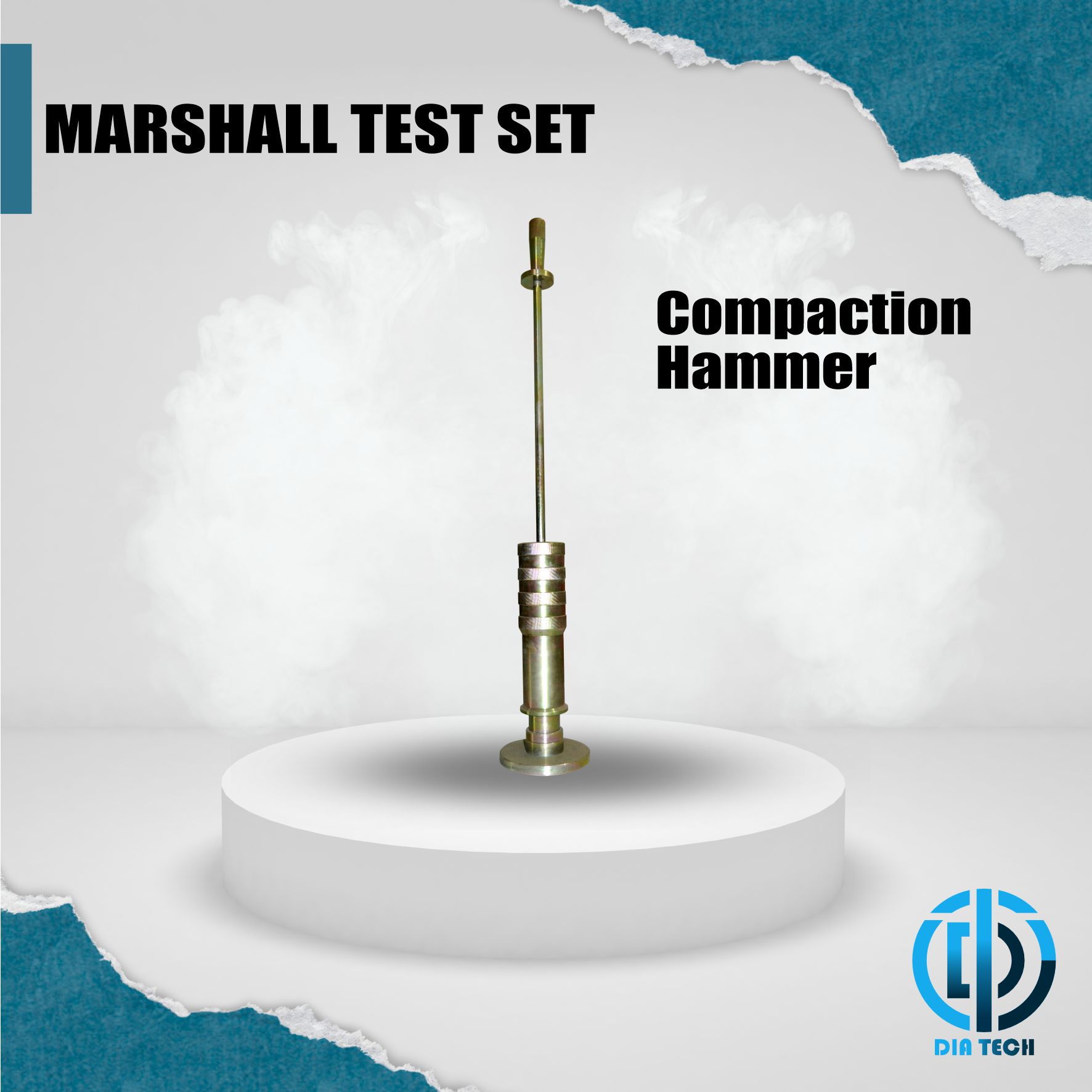

DA-324 Compaction Hammer : Machine steel, plated 10 lbs, hammer weight, 18 inch drop height. (1 set)

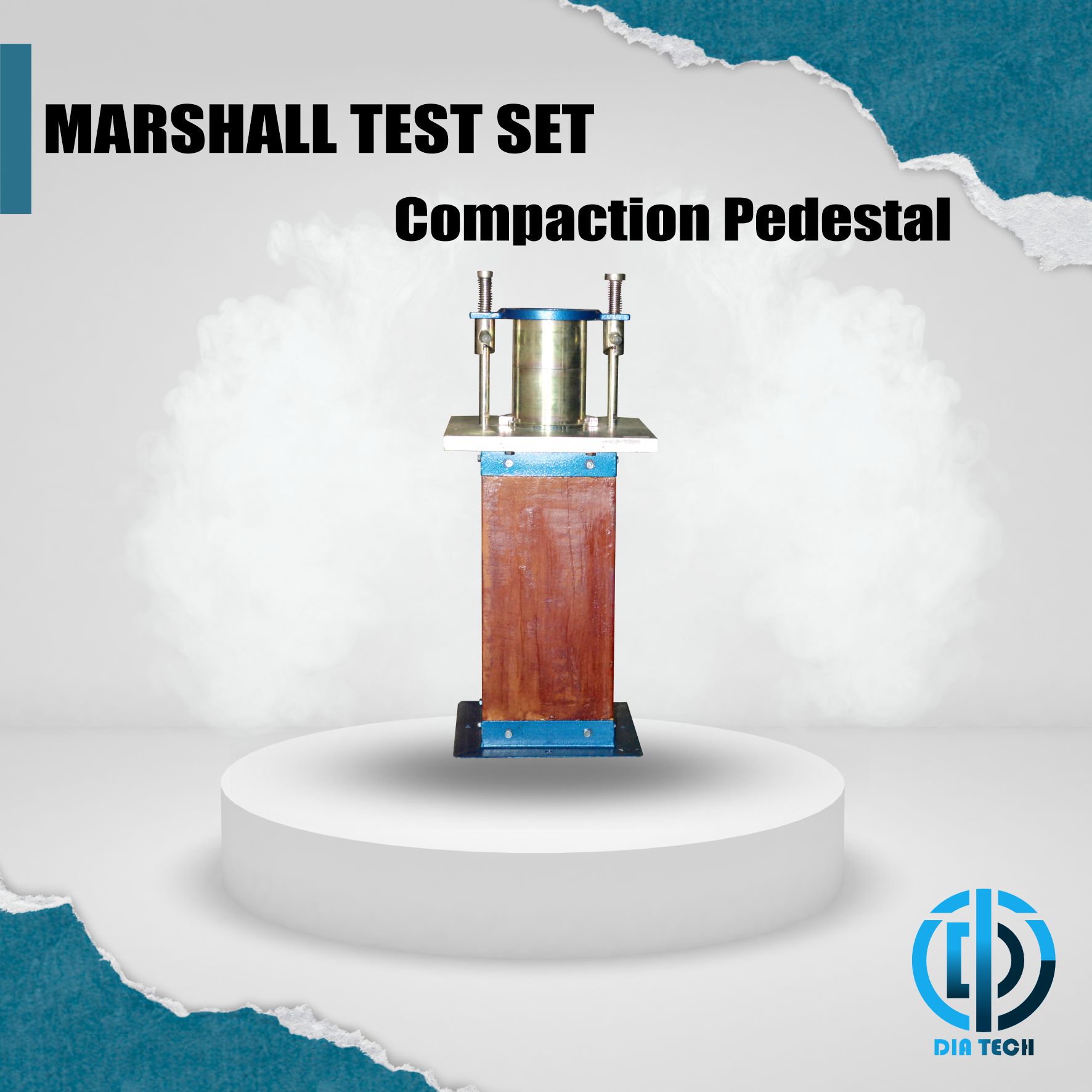

DA-326 Compaction Pedestal : Wooden base with steel platen. Comprising 300 mm square x 25mm thick steel plate secured to an 200 mm square x 45 inch high wooden block. (1 set)

DA-327 Compaction Mold Holder : Machined steel, quick clamping sytem (1 set)

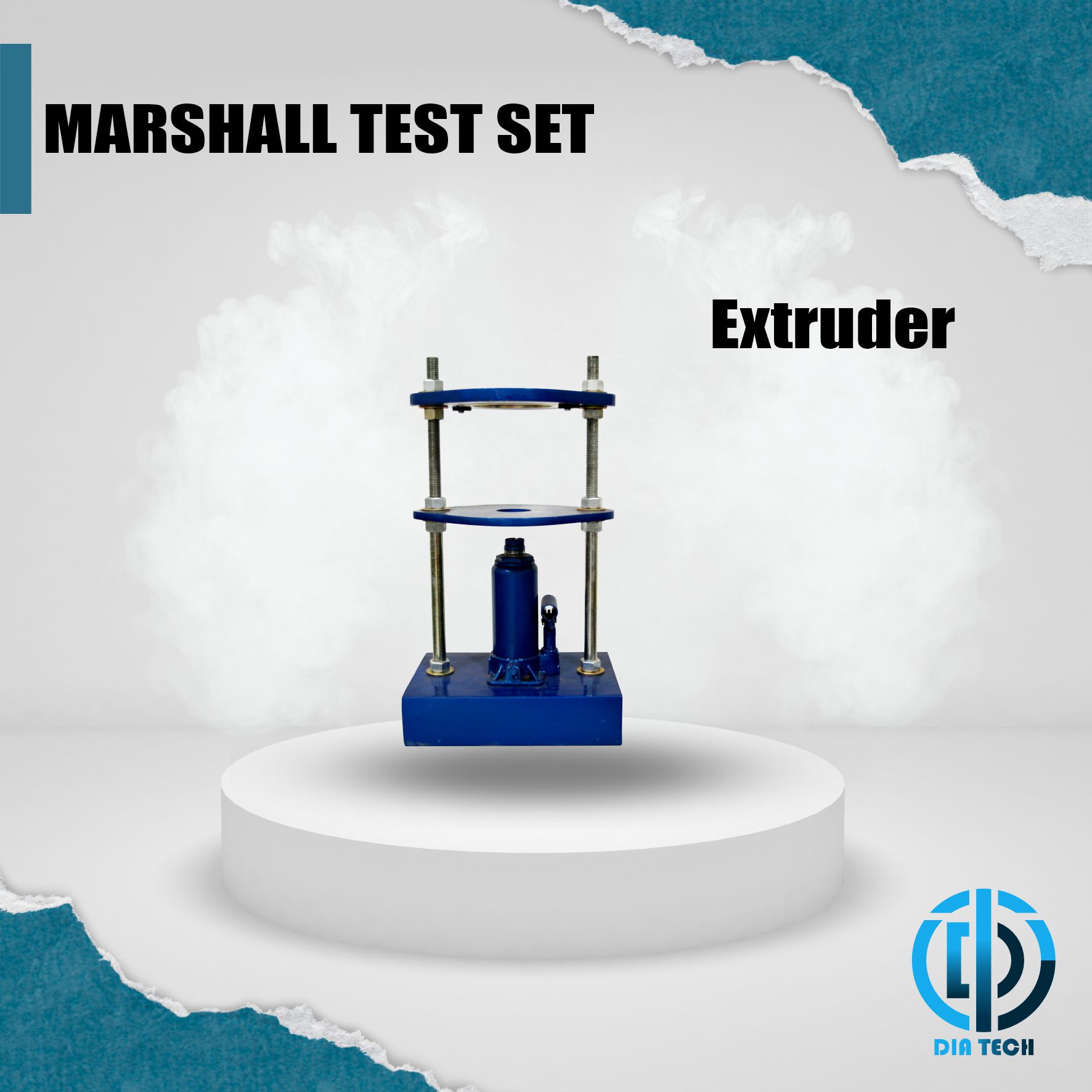

DA-328 Extruder : Steel frame, hydraulic system. Used for ejection speciment from mold DA-322 (1 set)

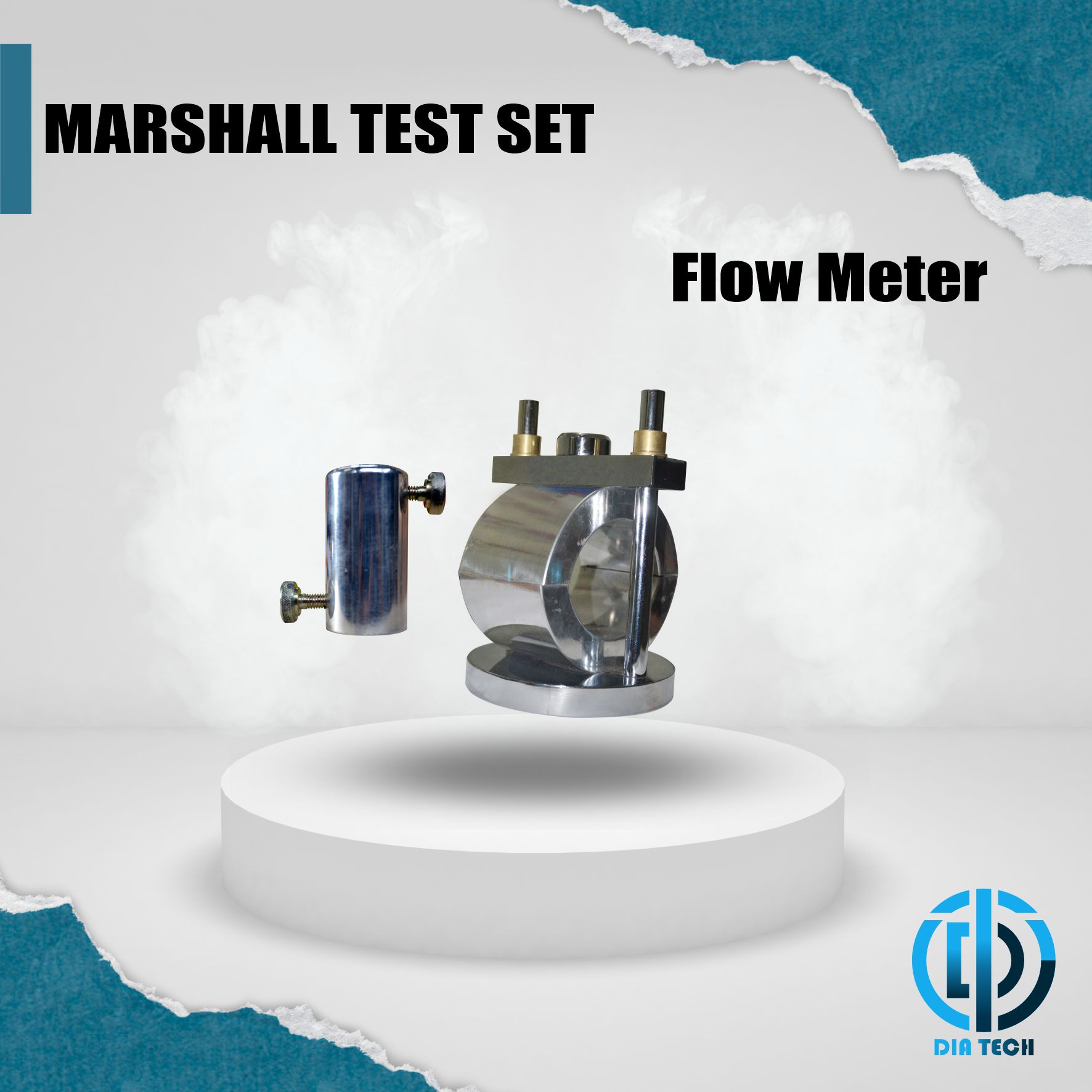

DA-329 Flow Meter : Cast alumunium, clamping bolt, supplied complete with dial indicator 30 x 0.01 mm (1 set)

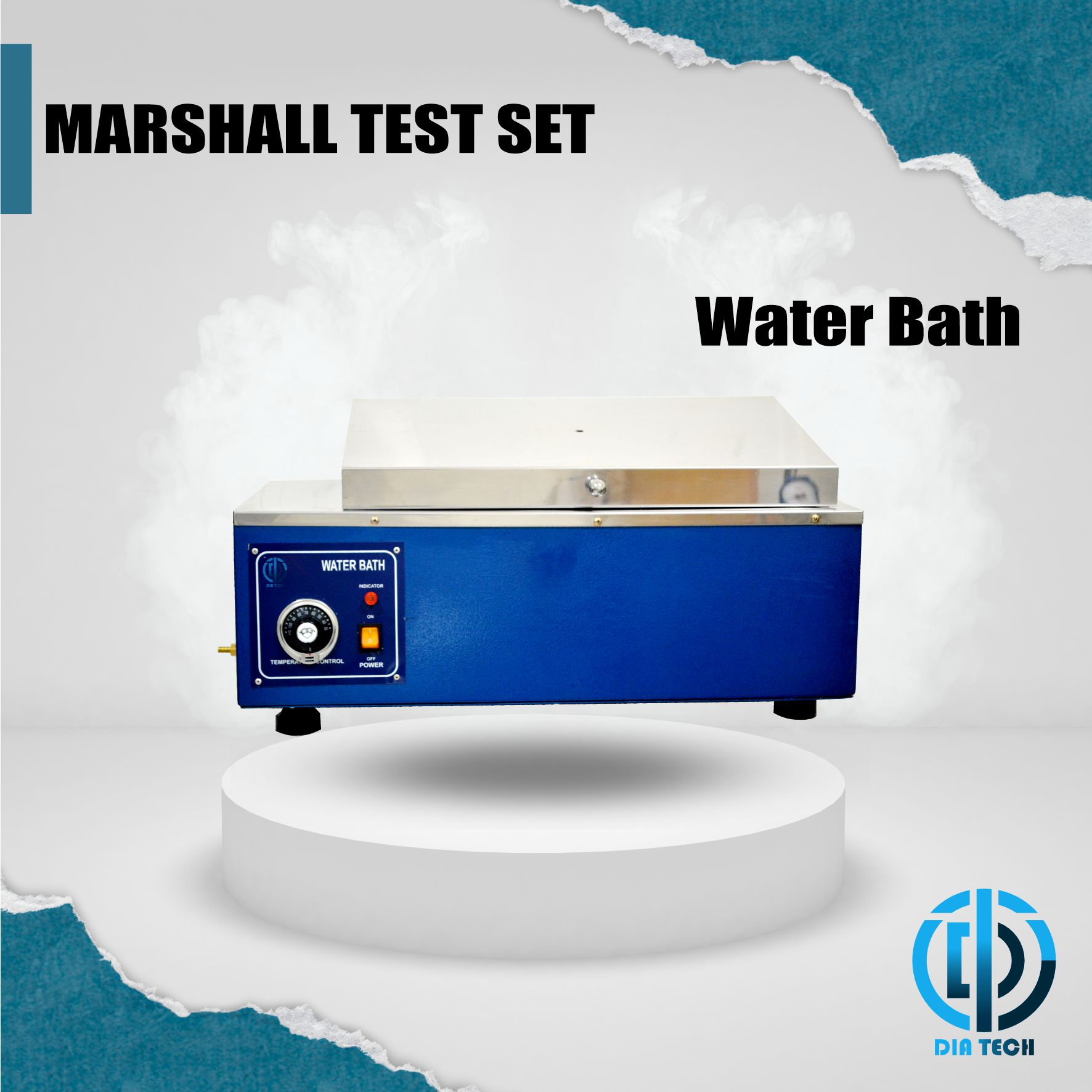

DG-200 Water Bath : 12 litre capacity, stainless steel, water heater, 220V-AC thermostat 30 – 85°C (1 set)

DG-101.6 Proving Ring : 6.000 lbs capacity, Calibration & certificate (1 set)

Selain Peralatan Laboratorium Aspal, kami juga menjual Alat Laboratorium Tanah, Alat Laboratorium Beton, Alat Mekanika Fluida / Hidrolika, Alat Survey dan Pemetaan
