Alat Laboratorium Tanah

Standard Testing : ASTM D-1883 / AASHTO T-193; According SNI 03-1744-1989
For determining the bearing ratio of soil.

Consist of :
DT-361 A Electrical Loading Machine : Electric, 220 V-AC, 1/2 HP, 1 Phase, speed 0.05″/min reversing switch 10.000 lbs capacity. (1 set)

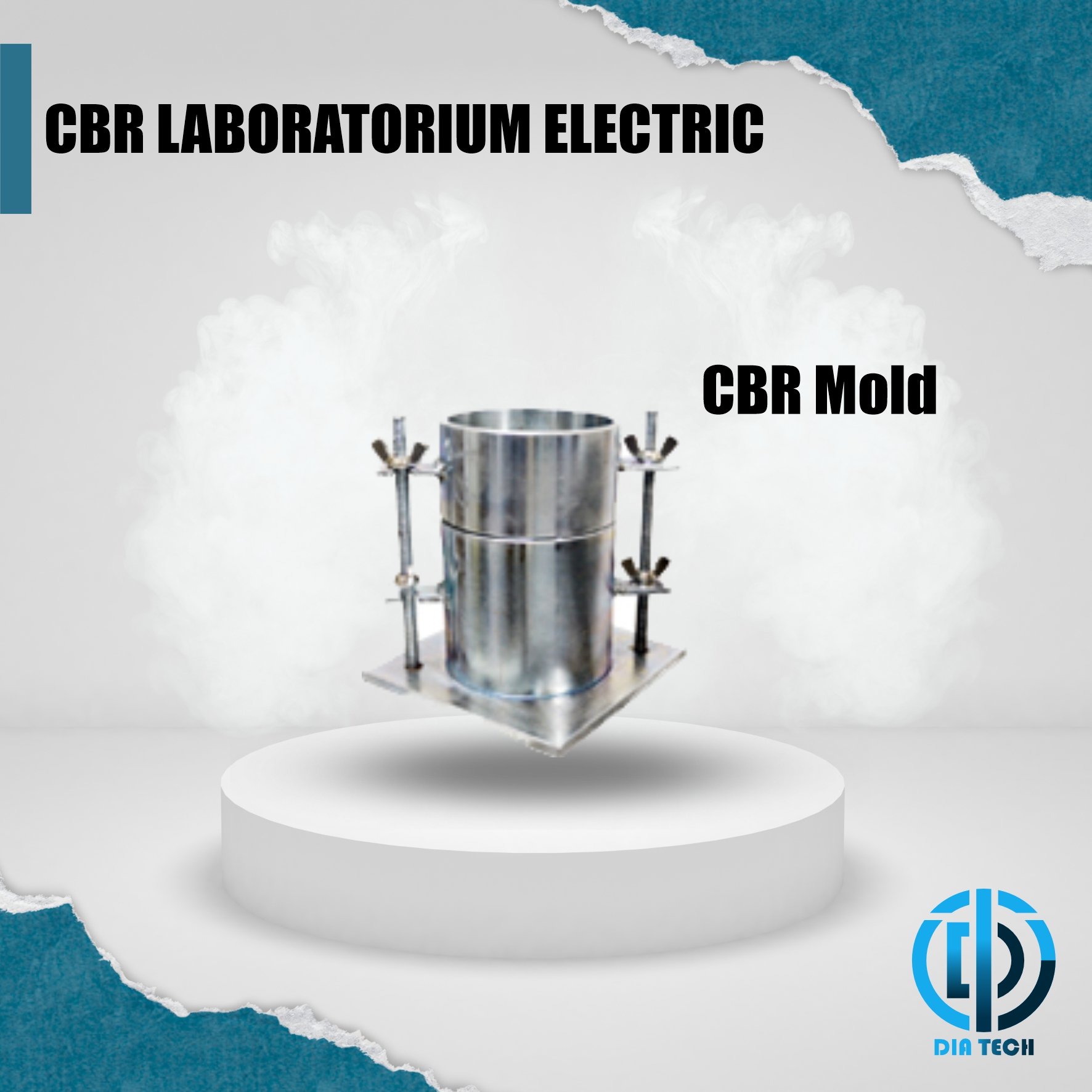

DT-362 CBR Mold : Machine steel, 6″ i.d, 7″ height, 2″ height of collar. (3 pcs)

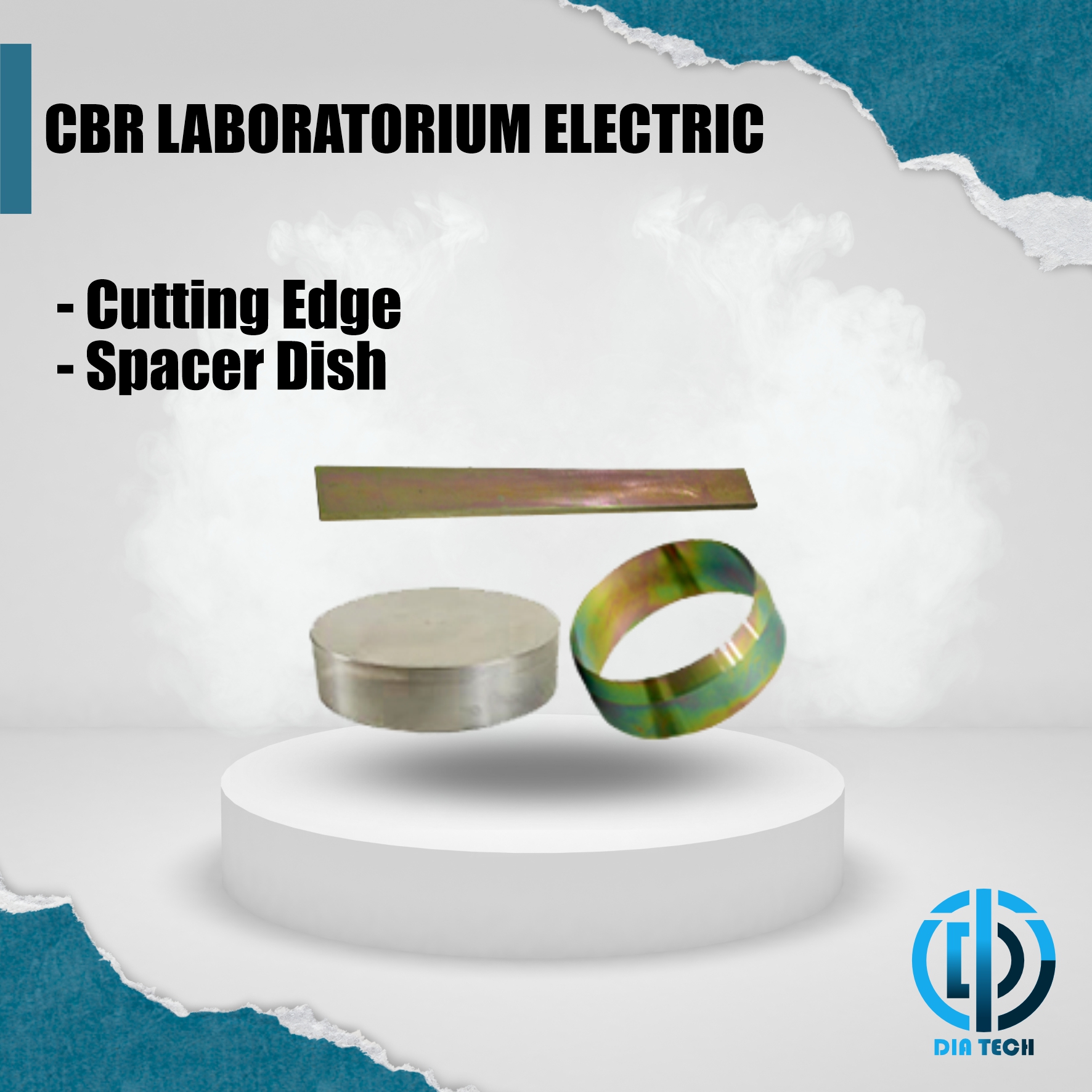

DT-363 Spacer Dish : Machine steel, 5 15/16″ diameter, 2.416″ height (1 pc)
DT-364 Cutting Edge : Machine steel, sharp edge (1 pc)

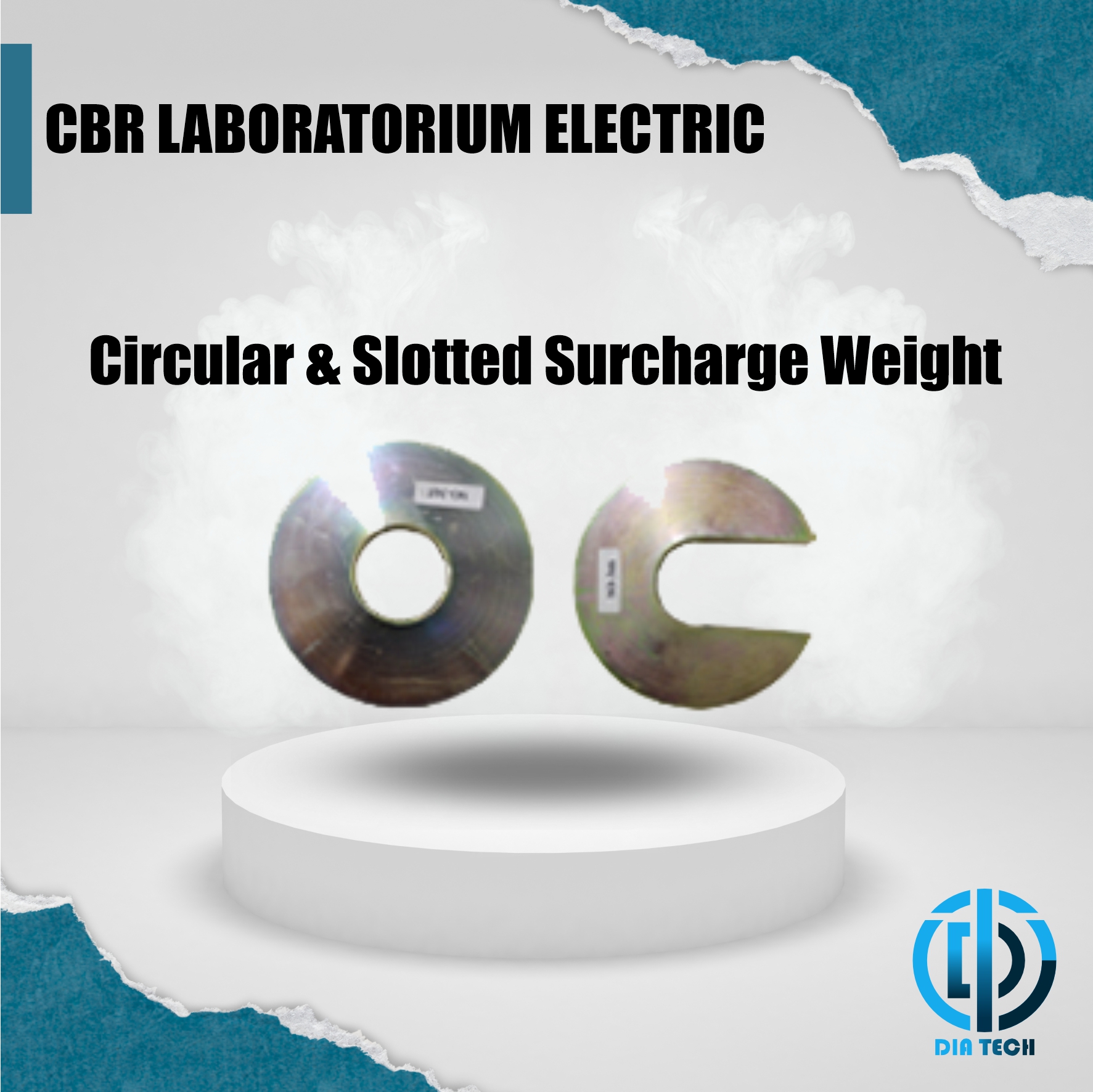

DT-365 Circular Surcharge Weight : Machine steel, 5 7/8″ o.d, 2 1/8″ i.d, 5 lbs weight (3 pcs)
DT-366 Slotted Surcharge Weight : machine steel, 5 7/8″ o.d, 2 1/8″ slotted width, 5 lbs weight (3 pcs)

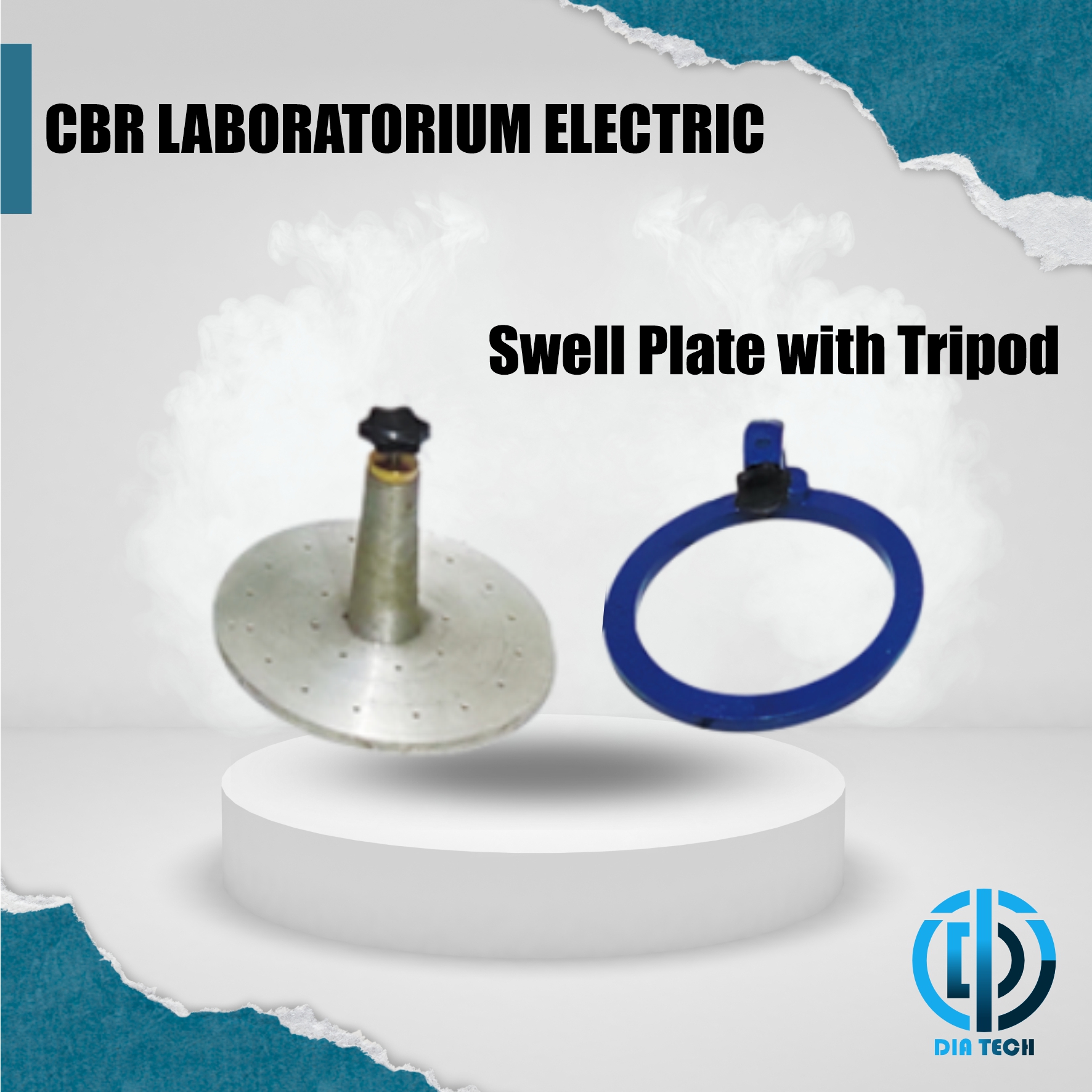

DT-367 Swell plate : Alumunium with adjustable stem (3 pcs)

DT-354 Modified Proctor Hammer : machine steel, plated, 2″ dia, 18″ drop height, 10 lbs weight. (1 pc)
DT-369 Filter Paper : 6 inch diameter., 100 sheets/ box (1 box)

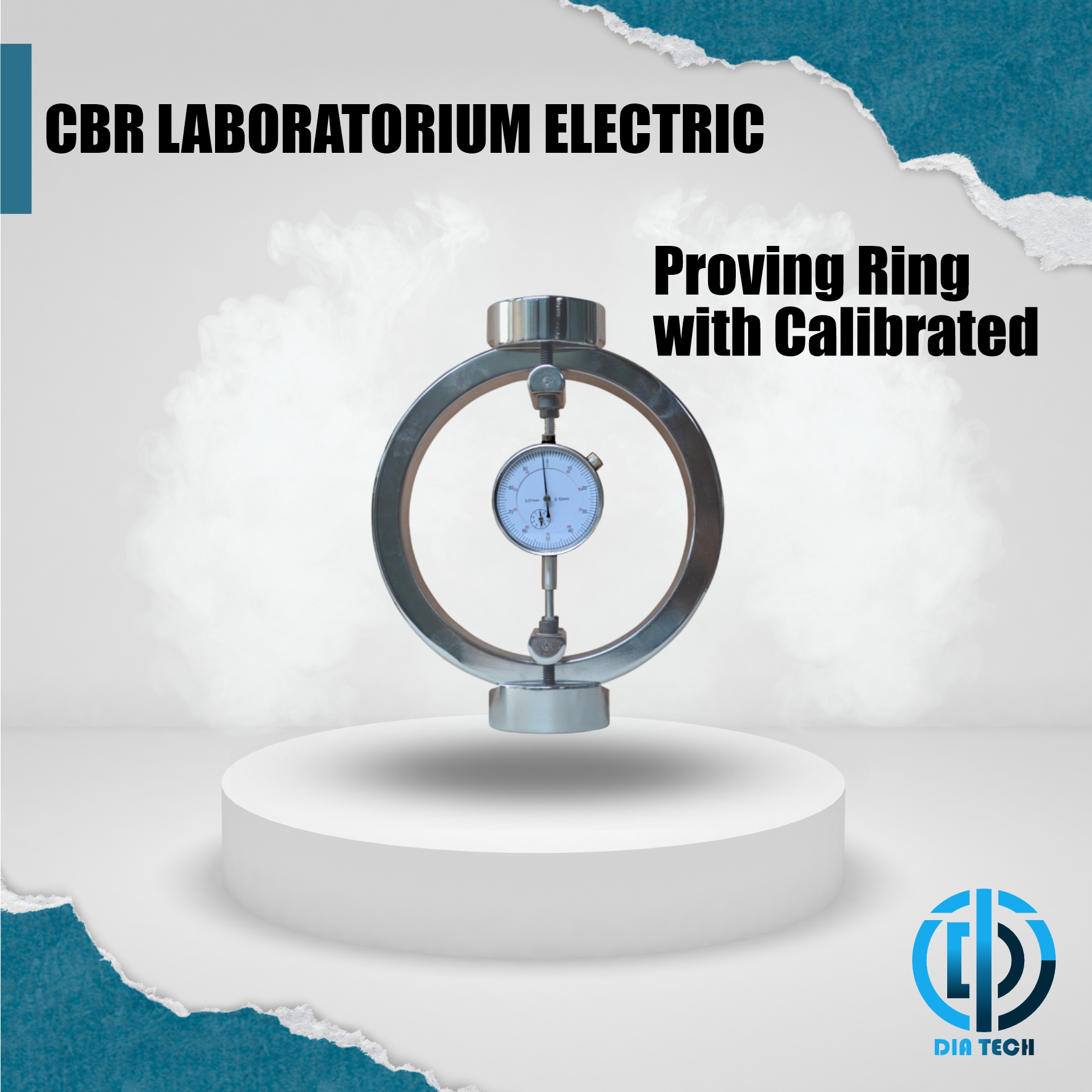

DG-101/6 Proving Ring : 6.000 lbs capacity, Calibration & certificate (1 set)
DG-131 Dial Indicator : Measuring range 0.01″ x 1″ (1 pc)
DG-137C Swell Dial Penetration : Range 30 mm x 0.01 mm (3 pcs)

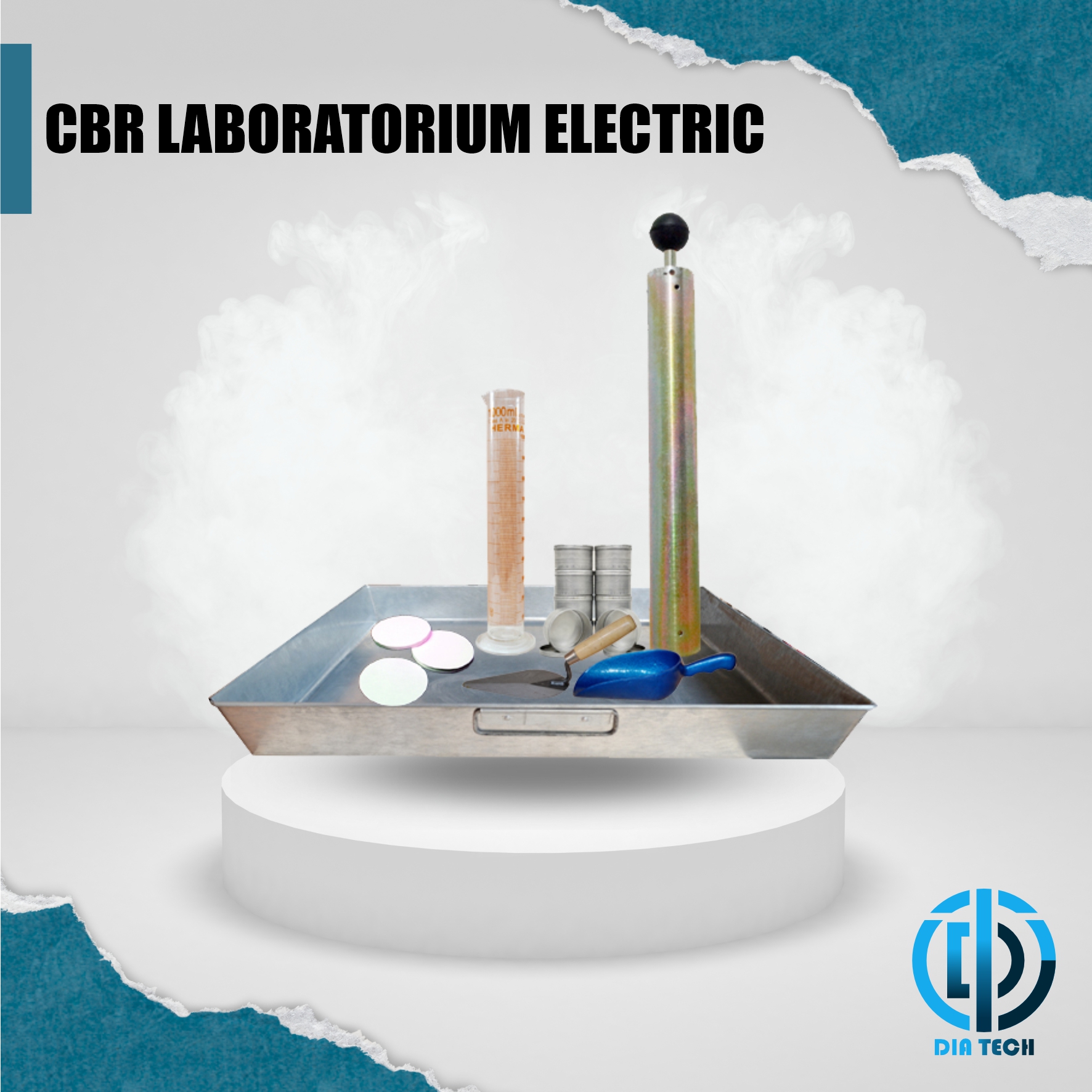

DG-303 Square Pan : Galvanized steel, 65 x 65 x 7.5 cm (1 pc)
DG-390 Thin Box : Alumunium, 60 gr capacity (12 pcs)
DG-405A Graduated Cylinder : Plastic made, 1000 ml capacity, single numbering (1 pc)
DG-801 Scoop : Cast alumunium, large size, round buttom. (1 pc)
DG-871 Trowel : Pointed type, wooden handle. (1 pc)
DG-890 Straight Edge : Galvanized steel, 300 mm length, for leveling samples in molds (1 pc)

Selain Peralatan Laboratorium Tanah, kami juga menjual Alat Laboratorium Beton, Alat Laboratorium Aspal
