Alat Laboratorium Tanah

Standard Testing : ASTM D-4429; According SNI 03-1738-1989
For determining CBR value on place

Specification :

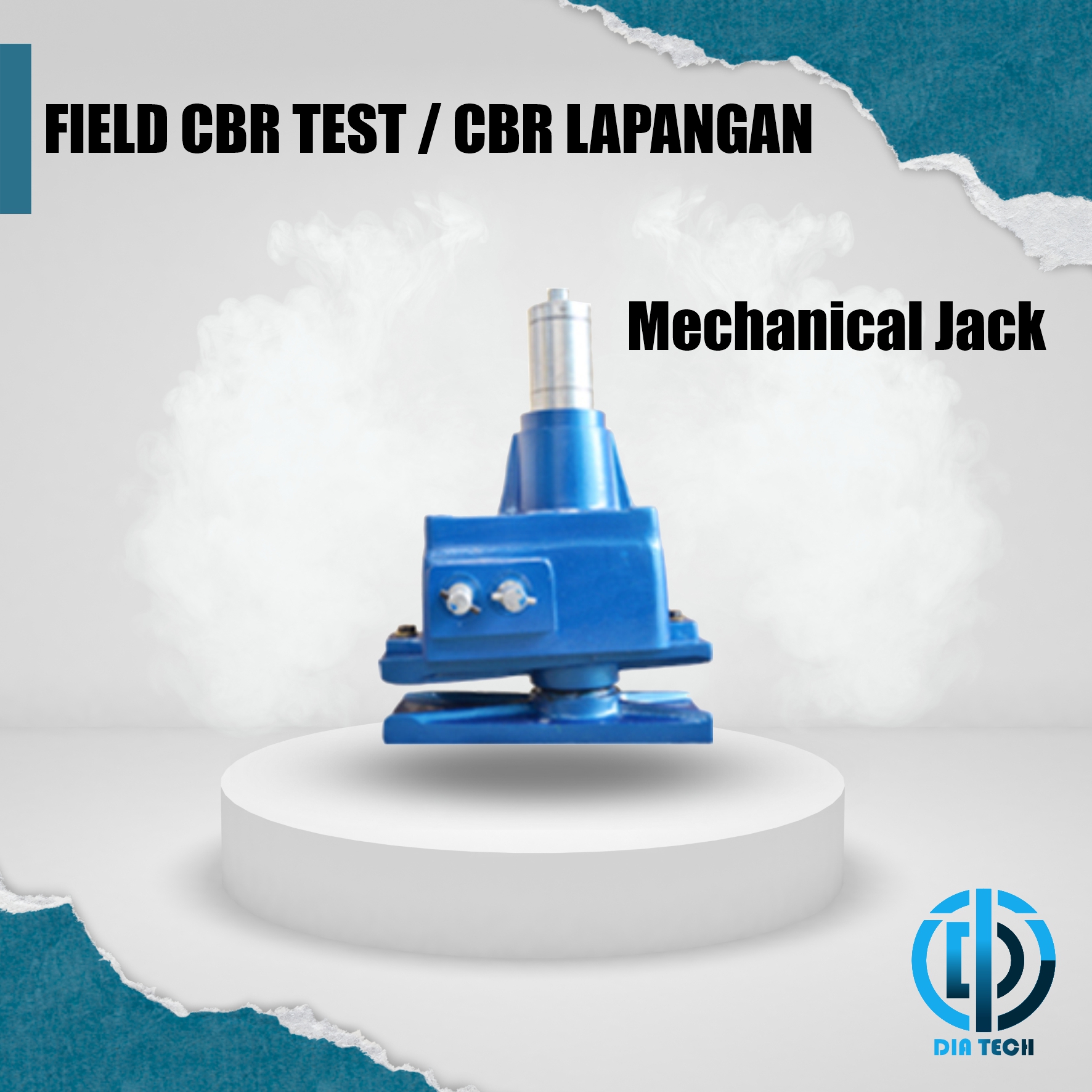

DT-261.1 Mechanical Jack : Cast alumunium housing, 5 tons cap, hand operated, 2 speeds. (1 pc)
DT-261.2 Swivel head : Cast alumunium (1 pc)
DT-262 Field Penetration Piston : Consist of :
DT-262.1 Penetration Piston : Machine steel, galvanized, 1.954″ piston diameter (1 pc)
DT-262.2 Extention set : Machined steel, plated, 5 cm, 10 cm, 20 cm, 30 cm, and 60 cm, provided with connecting adaptor. (1 set)

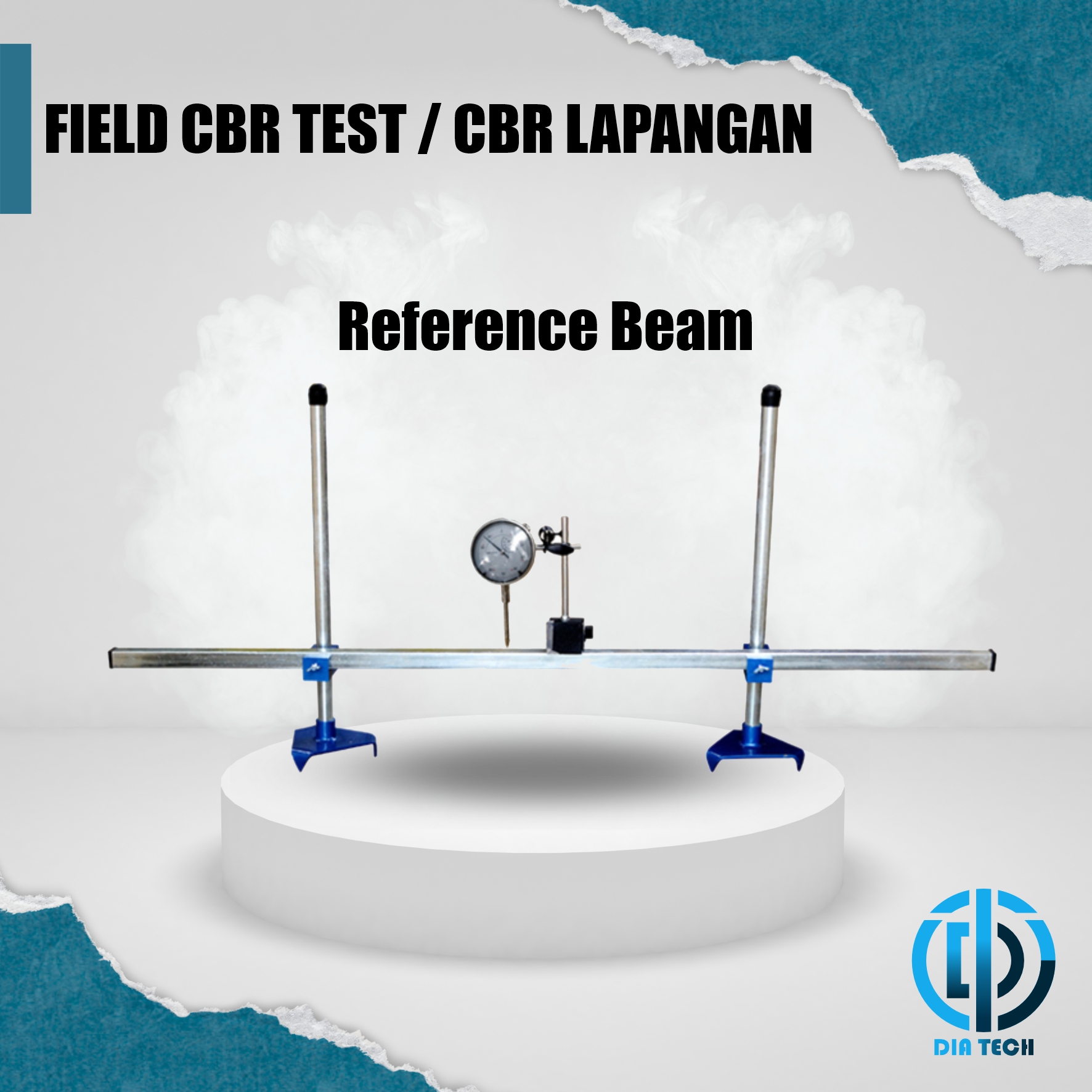

DT-263 Reference Beam : Steel pipe, 150 cm span include with two stand (1 set)

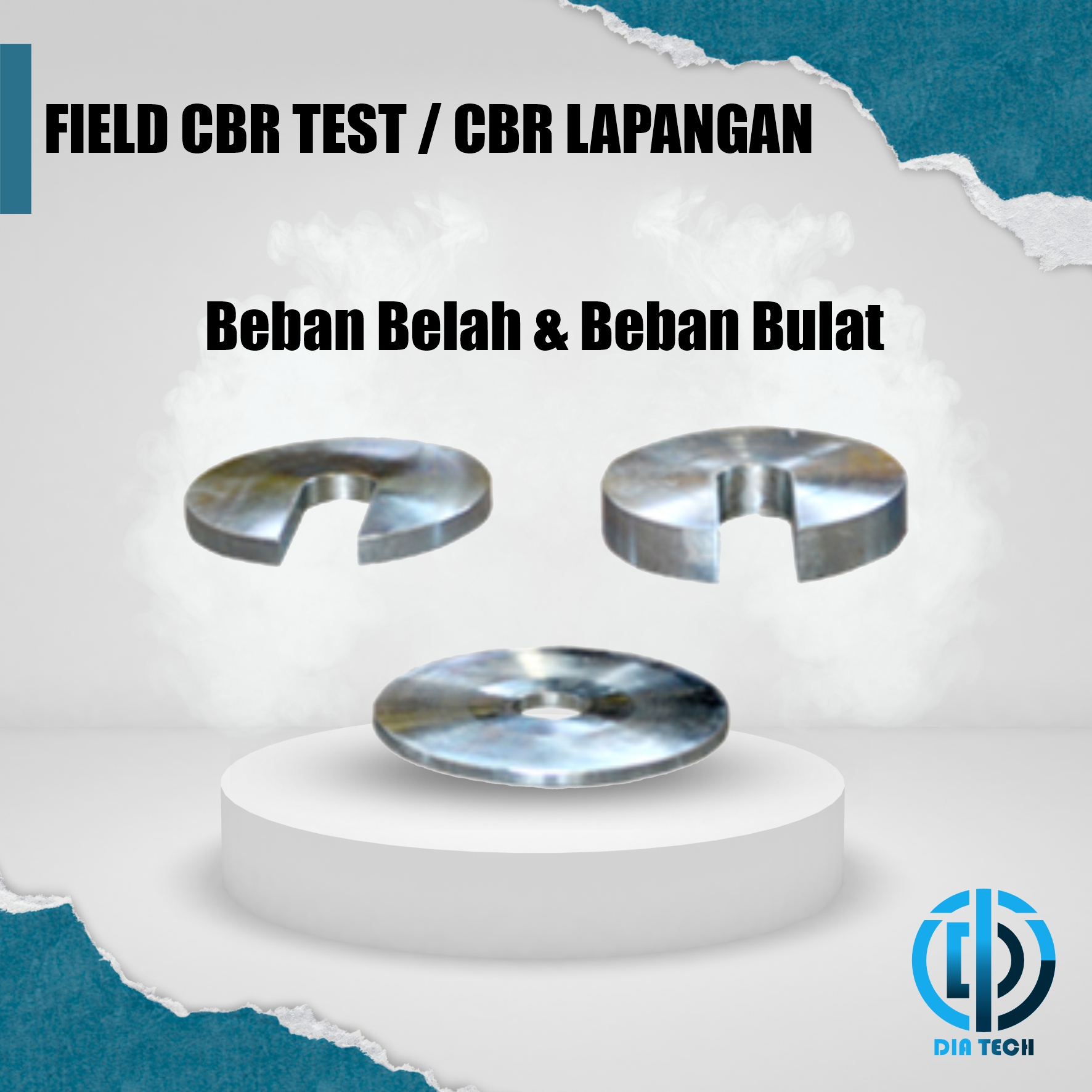

DT-264 Circular Surcharge Weight : Machine steel, plated, 10″ dia, 10 lbs weight (1 pc)
DT-265 Slotted Surcharge Weight : Machine steel, plated, 8″ dia, 10 lbs weight. (1 pc)
DT-266 Slotted Surcharge Weight : Machine steel, plated, 8.5″ dia, 20 lbs weight (1 pc)

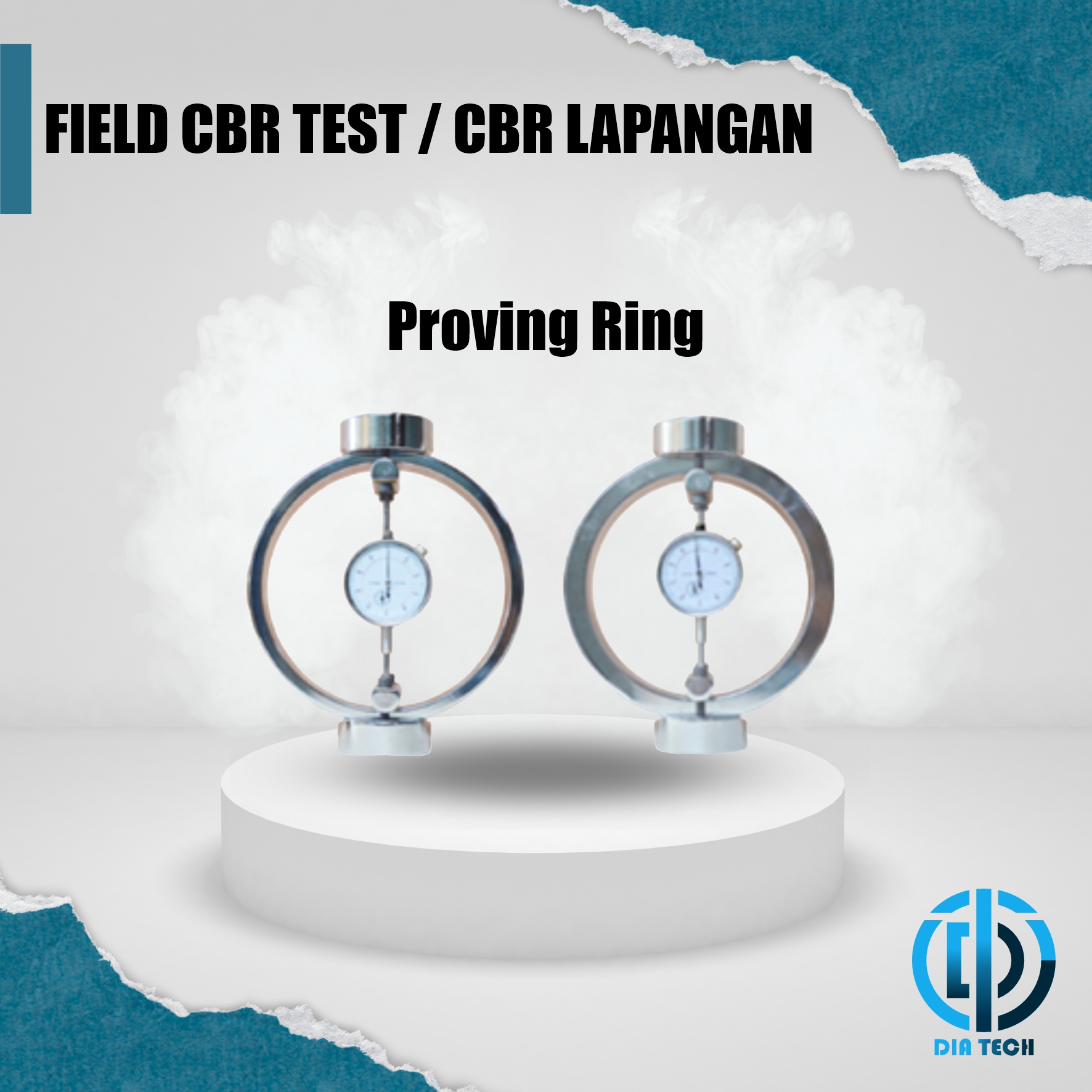

DG-101.5 Proving Ring : 2000 lbs capacity, Calibration & certificate (1 set)
DG-101.7 Proving Ring : 10,000 lbs capacity, Calibration & certificate (1 set)
DG-137 Dial Indicator : Range 30 x 0.01 mm (1 pc)
DG-140 Dial Holder : Chrome plated shaft with sample clamping device, powerfull magnet with on-off switch. (1 pc)

Selain Peralatan Laboratorium Tanah, kami juga menjual Alat Laboratorium Beton, Alat Laboratorium Aspal
